SPECIFICATIONS

• Length: 16’1″(4.9 m)
• Max HP: 90 HP
• Boat Beam: 6’6″(1.98 m)
• Weight: 940 lbs. (426 kg)
• Fuel Capacity: 13 US gal (49 L)
• Hull: ConvexV
• Seating: 5
• Draft Up: 14” (35.5 cm)
• Draft Down: 31” (78.8 cm)
• Deadrise: 16? Apex
• Centerline: 16’1” (4.9 m)

OPTIONAL EQUIPMENT

• Premium Impulse Mini Flake color feature
• Black Sunbrella® acrylic bow cover
• Black Sunbrella® acrylic cockpit cover (over windshield)
• CE Package (IMCI Certificate and Declaration of Conformity plus related hardware)

STANDARD FEATURES

• HULL & DECK
• Three-dimensional woven fiberglass
• Composite stringer grid & floor
• Composite transom
• Kevlar laminate reinforcement
• Uni-bond deck joint
• Enviro responsible resin
• Color-coordinated gelcoat feature

• SYSTEM
• Electric horn
• Powerpoint
• Automatic bilge pump

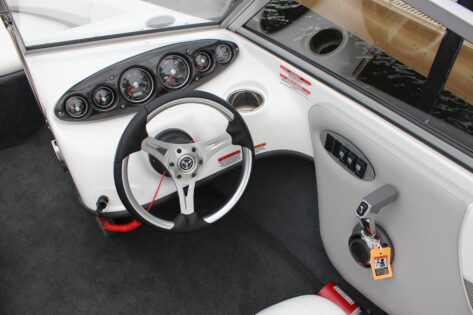

• Speedometer
• In-dash depth sounder

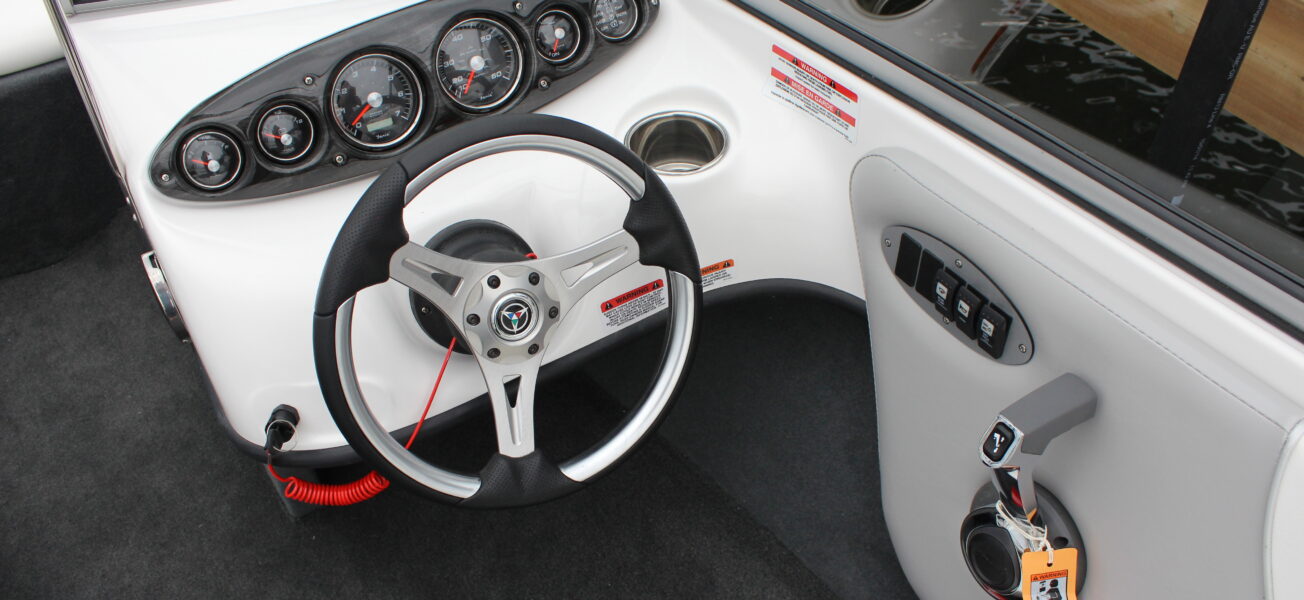

• Tilt steering
• Color-coded electrical system w/fused circuit protection

• HARDWARE
• Stainless steel deck hardware
• Stainless steel grab handles
• Welded stainless steel bow rails
• Stainless steel open base cleat
• Flip-down stainless steel swim ladder
• Flush-mounted stainless steel pull-out cleats
• Removable stainless steel ski tripod
• Fuel tank & gauge w/ stainless steel fuel fill & cap

• COCKPIT

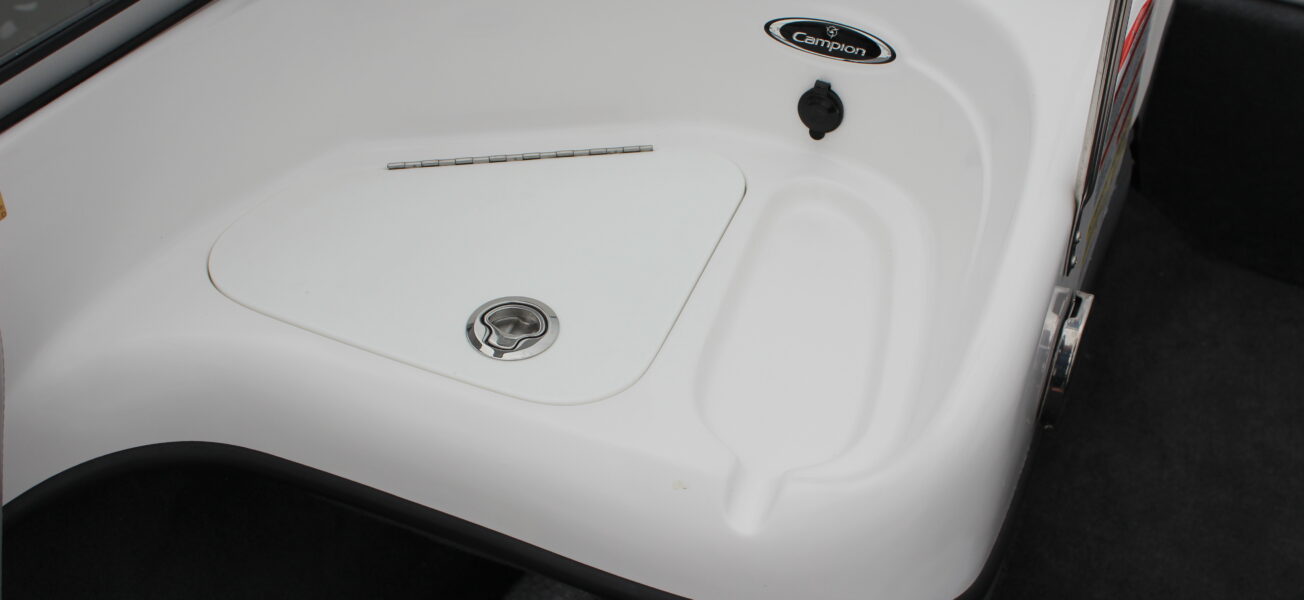

• Glove compartment/icebox

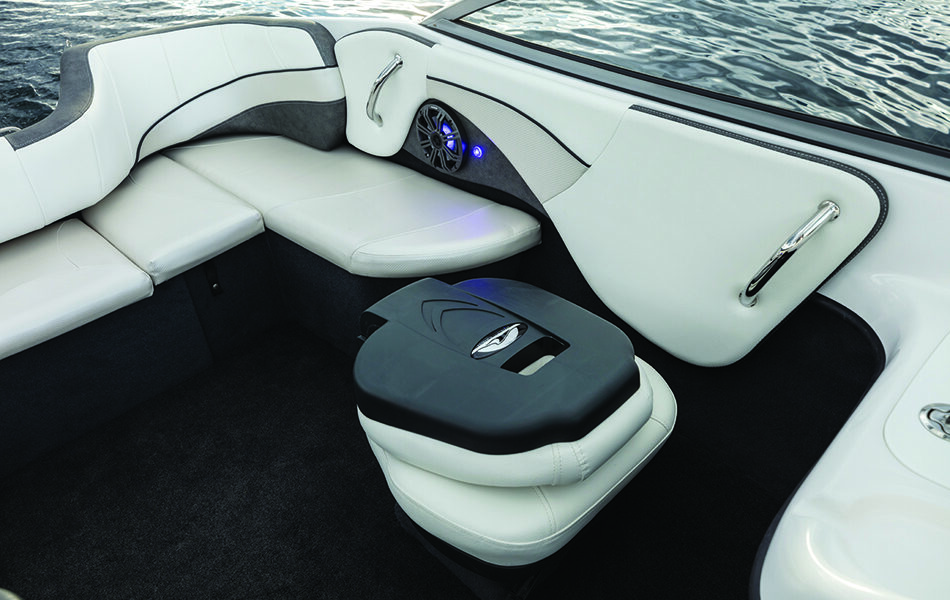

• Four Kicker® speakers
• Marine carpeting

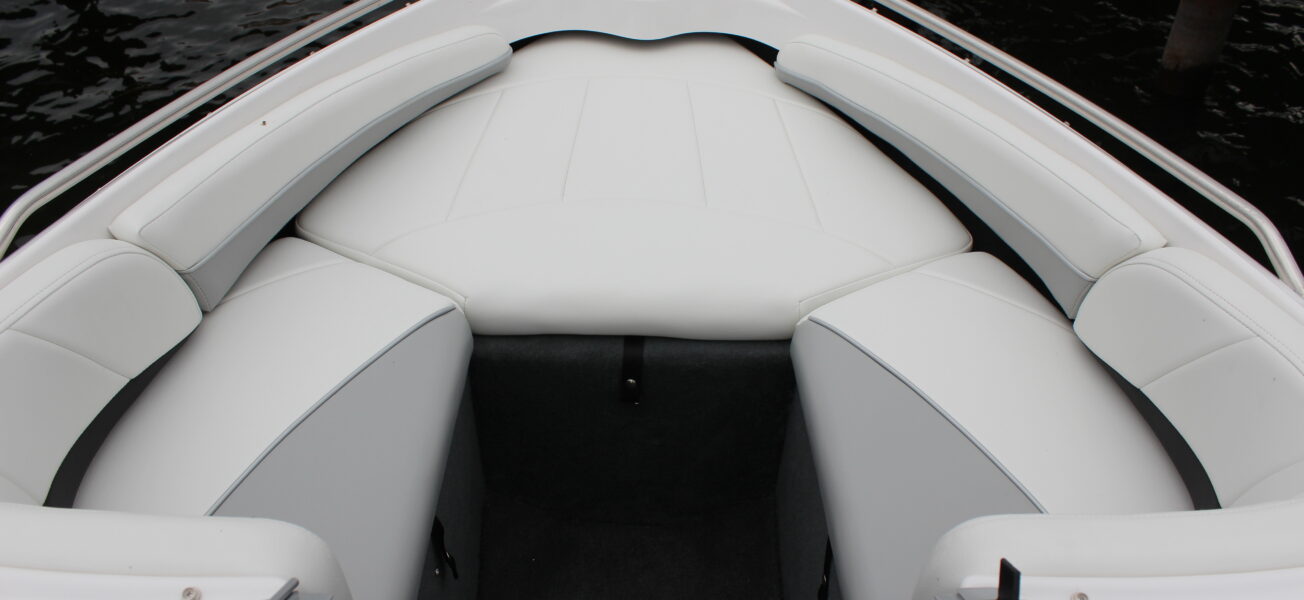

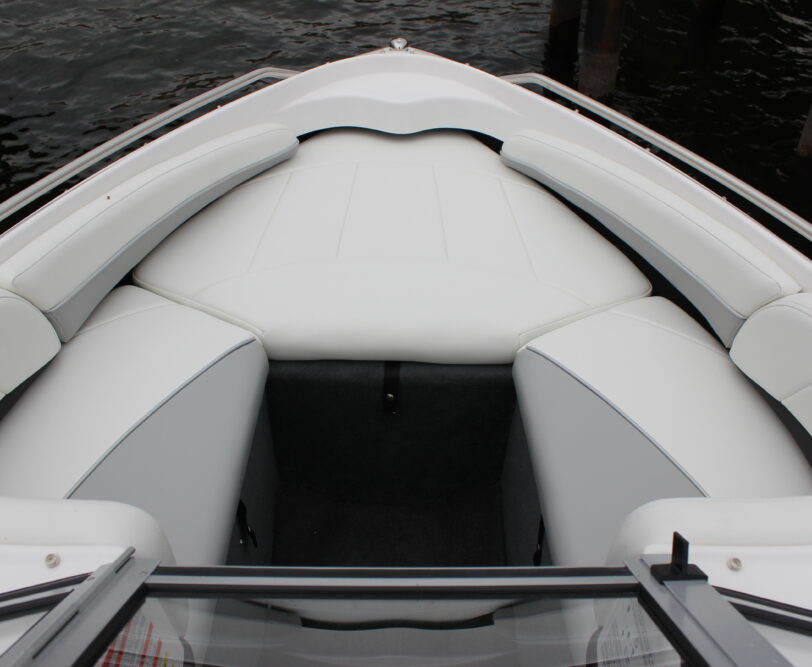

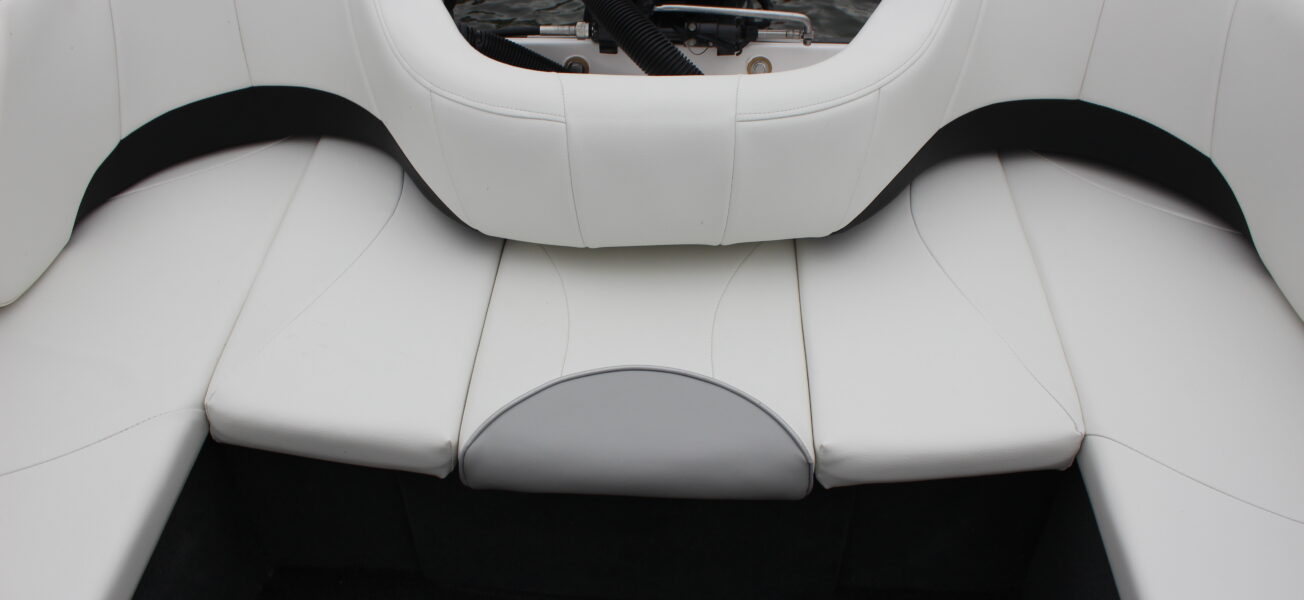

• Bow seating w/storage under
• Flip-down bucket seats with headrest
• Starboard & port with fore & aft slider base

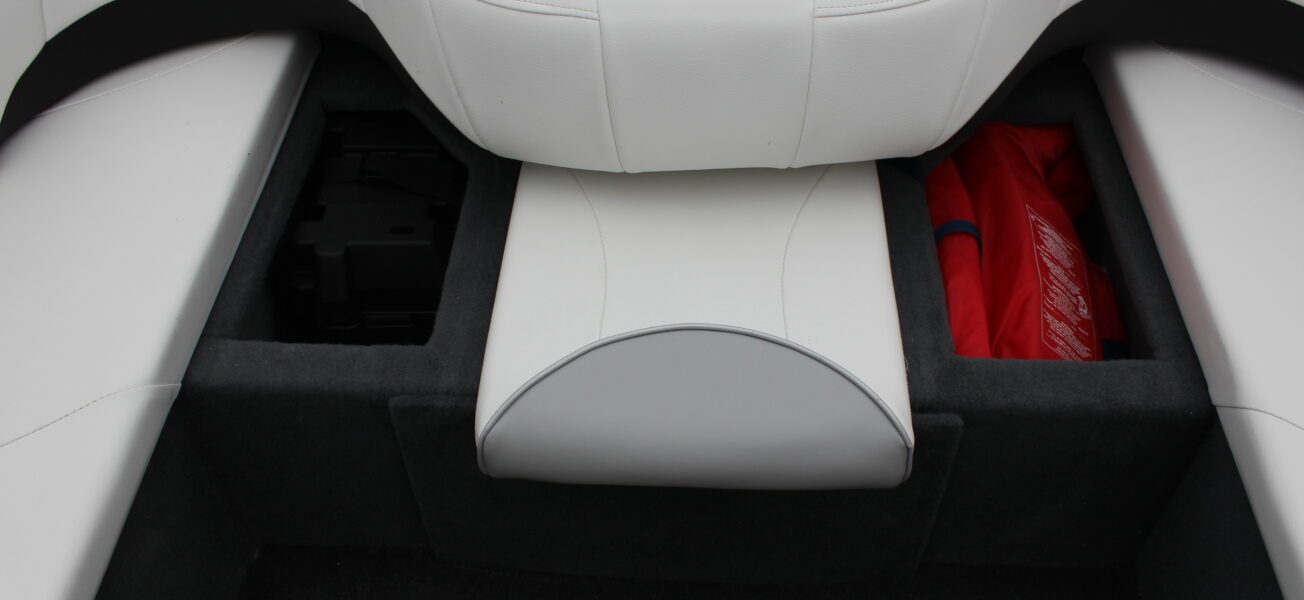

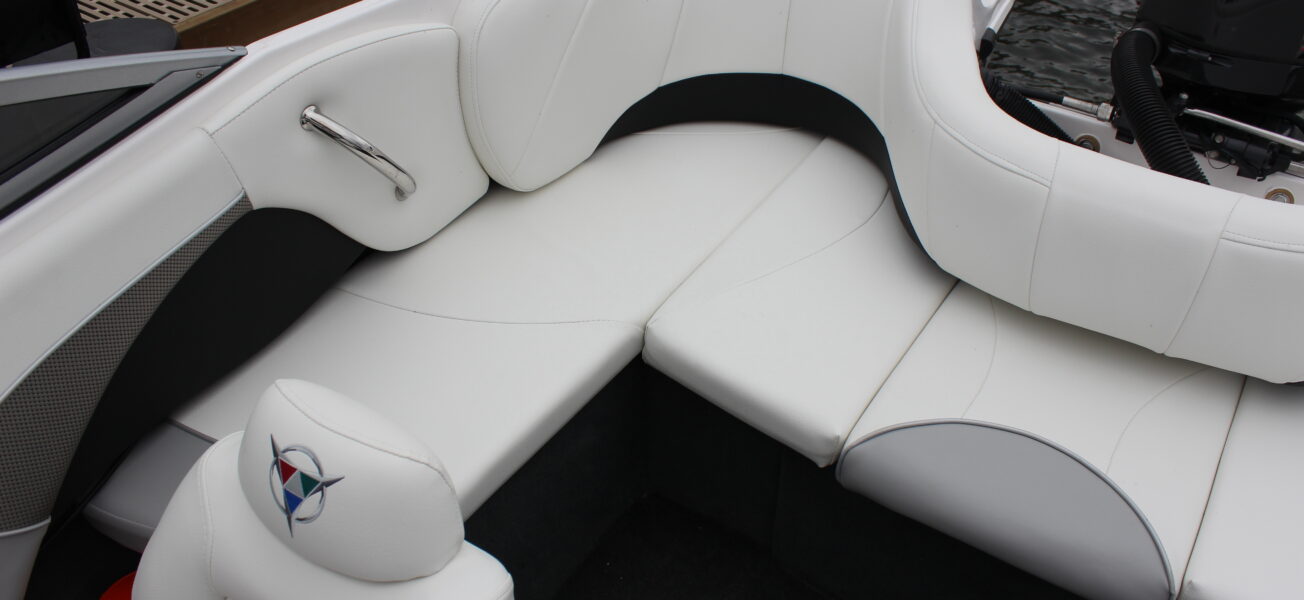

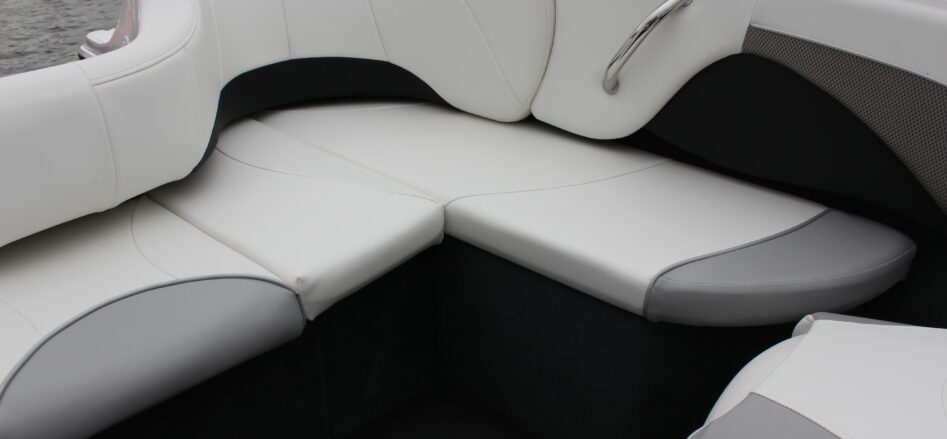

• Wraparound stern seating (with storage under)
• Kicker® KMC100 Media Center, AM/FM, Bluetooth, USB, iPod
• LED cupholders & cockpit lighting package
